WLDH Series Horizontal Ribbon Mixer WLDH Series Horizontal Ribbon Mixer

WLDH Series Horizontal Ribbon Mixer

WLDH Series Horizontal Ribbon Mixer
Inquiry Send Email

Description

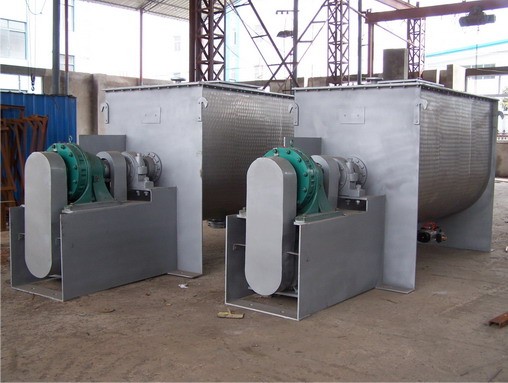

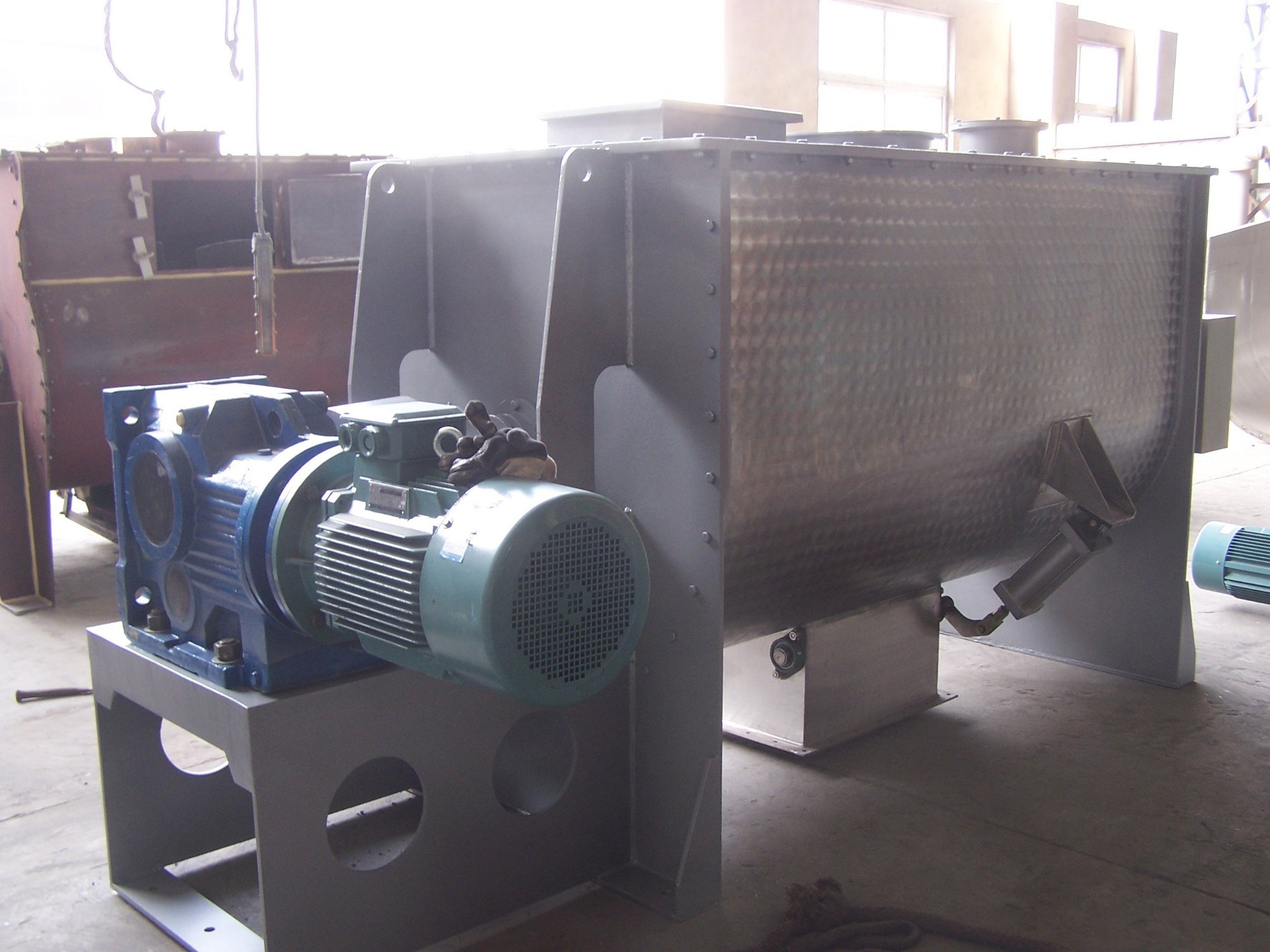

WLDH Series Horizontal Ribbon Mixer

WORKING PRINCIPLE

This machine consists of container, screw stirring paddles, and transitional parts; the screw paddle usually has 2 or 3 layers, the outer screw will push the material from the sides to the center, and the inner screw will push the material from the center back to the sides, the convection mixing is form in this way.


FEATURES

1.   Larger loading capacity and small occupied area.

2.   It is difficult to clean when it is used to mix viscous or adhesive material.

APPLICATION

This mixer is mainly used in the mixing of viscous or adhesive powder material and powder material with liquid and paste added. Because it is difficult to clean for mixing viscous material, we recommend to use this machine for mixing large output production which doesn’t required to displacing variety material frequently.


TECHNICAL PARAMETERS

Model

WLDH-0.1

WLDH-0.3

WLDH-0.5

WLDH-1

WLDH-1.5

WLDH-2

WLDH-3

WLDH-4

WLDH-6

WLDH-8

WLDH-10

Mixing Capacity

(per batch/kg)

30-50

100-150

200-300

400-600

600-900

800-1200

1200-1800

1600-2400

2400-3600

3200-4800

4000-6000

Power

(kg)

1.5-4

3-3.5

4-11

7.5-15

11-18.5

15-22

18.5-30

22-37

37-55

37-55

37-55

Weight

(kg)

300

500

900

1400

1900

2500

3100

3600

5300

6800

7800


Notes: The material grade are carbon steel C and stainless P.
