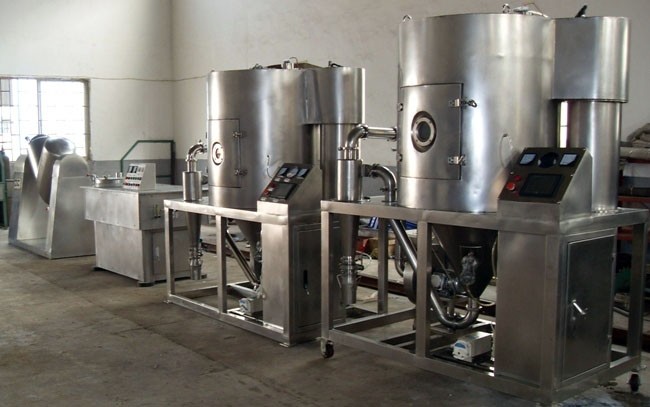

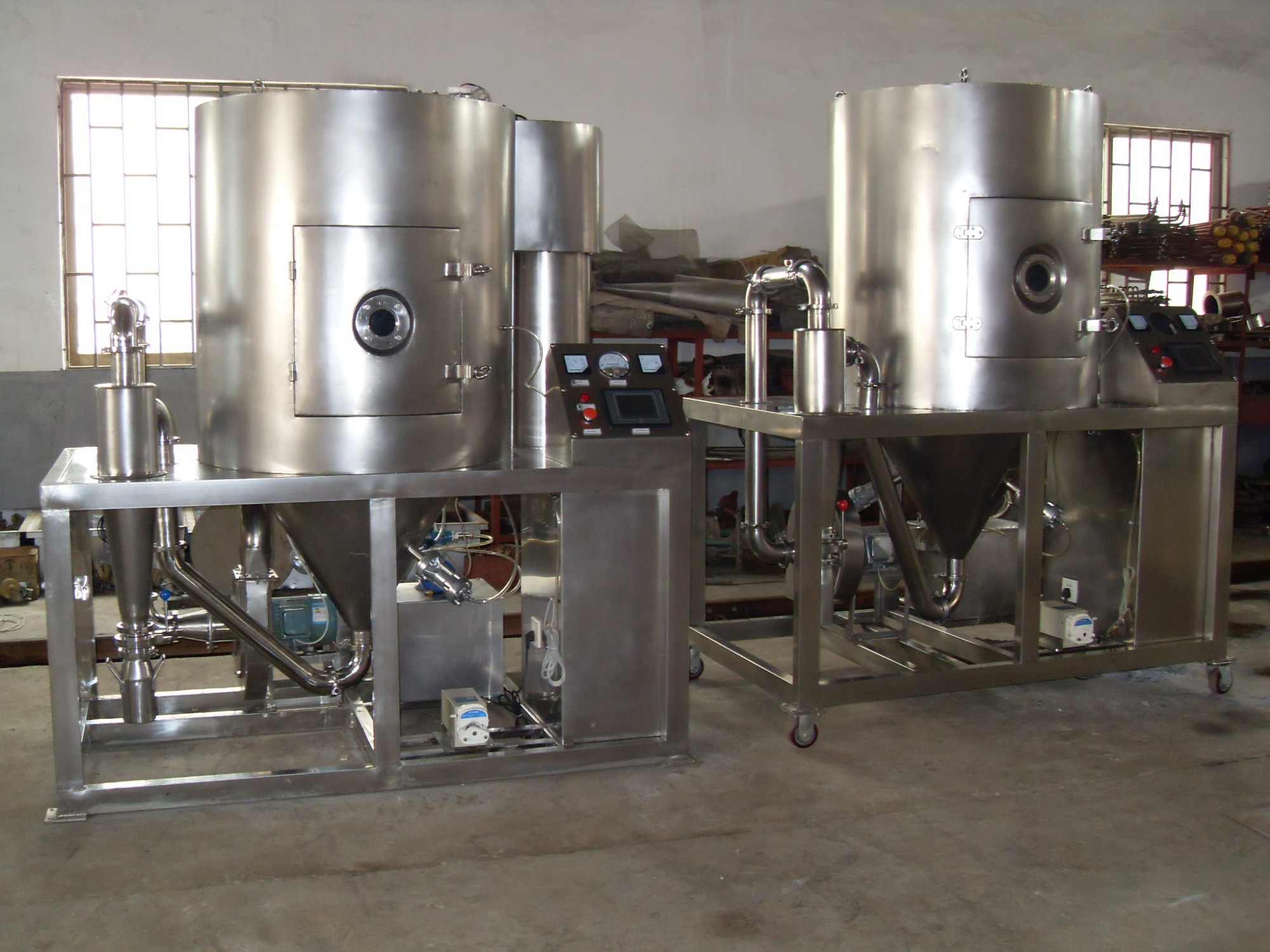

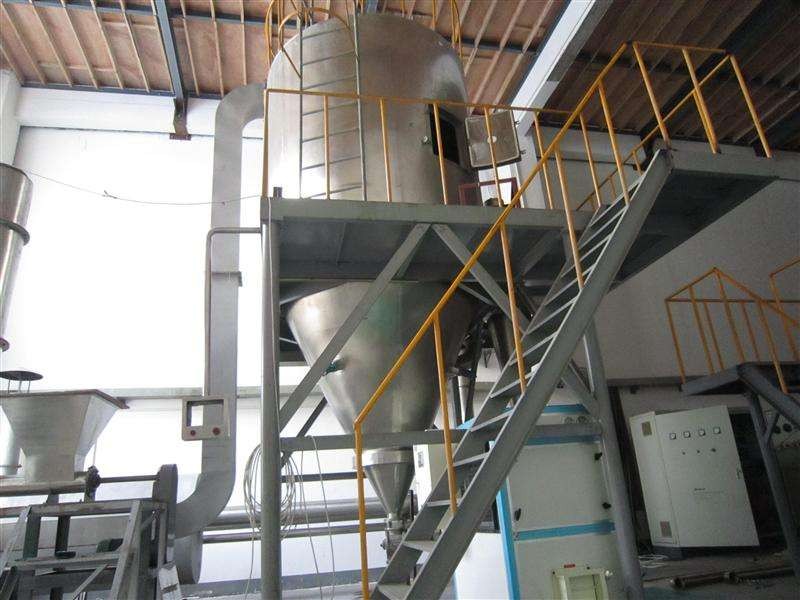

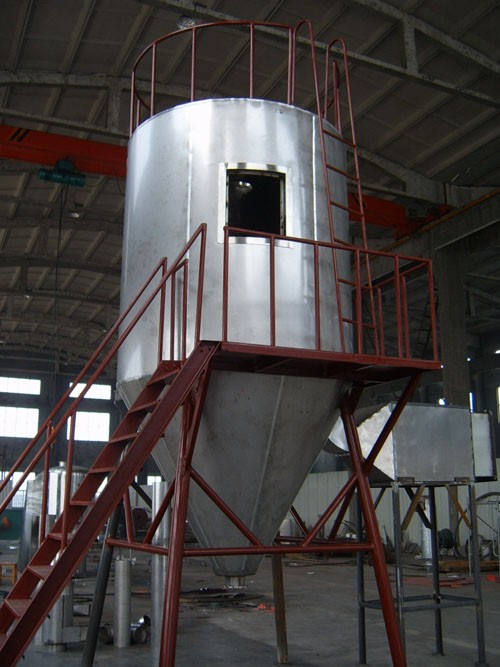

LPG Series High Speed Centrifugal Spray Dryer


DESCRIPTION

The spray drying technology is the widest used in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, the spray drying is one of the most desired technologies when the particle size and distribution of the final products, their residual water contents, and the stocking density and the particle shape can meet the precision standards.

WORKING PRINCIPLE
The air enters into the air distributor which on the top of the drier after filtering and heating. The hot air in spiral form equably enters into the drying room. When liquid raw material is passing through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extremely fine mist liquid beads. Raw material can be dried to the final products instantly while it contact with the heated air. The finished products are discharged continuously from bottom of the drying tower and cyclones segregator. The waste gas is discharged from blower.

FEATURES

1.       The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% - 98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds. This dryer is especially suitable to dry the heat sensitive material.

2.       The uniformity, flow capability & solubility of the dryer are very good. The finished products have high quality and high-purity.

3.       Simple and stable operation, convenient control and debugging, easy to achieve automatic operation.

4.       The production process is simple, The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There’s no need for smashing or sieving after drying so the operational environment is clean and in healthful condition, it also can avoid powder flying in the air during drying process.



APPLICATION

Chemical Industry:

Sodium Fluoride (potassium), Basic Dyes & Pigments, Dyes Intermediates, Fertilizer, Formic Silicic Acid, Catalyst, Sulfuric Acid Agent, Amino Acid, White Carbon Black, and etc.


Plastic Resin:

AB, ABS Emulsion, Urea-formaldehyde Resins, Phenolic Resins, Urea Formaldehyde Resins, Polyethylene, Polyvinyl Chloride, and etc.


Food Industry:

Lipid-rich Milk, Armpit Protein, Cocoa Milk Powder, Substitute Milk, Hunting Blood Meal, Egg White (Yellow), Chicken Juice, Coffee, Instant Tea, Seasoning Meat, Protein, Soybean, Peanut Protein, Hydrolyzate, and etc.


Sugar:

Corn Syrup, Corn Starch, Glucose, Pectin, Maltose, Potassium Sorbate, and etc.


TECHNICAL PARAMETERS

       Model

Dimension

LPG-5

LPG-25

LPG-50

LPG-150

LPG-200-2000

Inlet Temperature

140-350 automatic control

Outlet Temperature

80-90

Max. Evaporation Capacity
(kg/h)

5

25

50

150

200-2000

Atomizing Method

compressed air transmission

mechanical transmission

Revolution
(r.p.m)

25000

18000

18000

15000

8000-15000

Diameter of Atomizing Disc(mm)

50

120

120

150

180-240

Heat Source

electricity

steam+electricity

steam+electricity, oil, oil fuel, hot air furnace

Max. Heating Power(kw)

9

36

72

99



Overall Dimensions
(L W H)(m)

1.8×0.93×2.2

3×2.7×4.26

3.5×3.5×4.8

5.5×4×7

depends on actual situation

Dried Powder Restoring Rate(%)

≥95

Notes:

The evaporated amount of water is related to the characteristics of raw materials and the temperature of inlet air and outlet air. When the temperature of the outlet air is 90°C, the water evaporated curve is listed in above table (for reference only). If the product have been improved or updated by new technology, the related parameters will be change accordingly!
